Suction filters and strainers

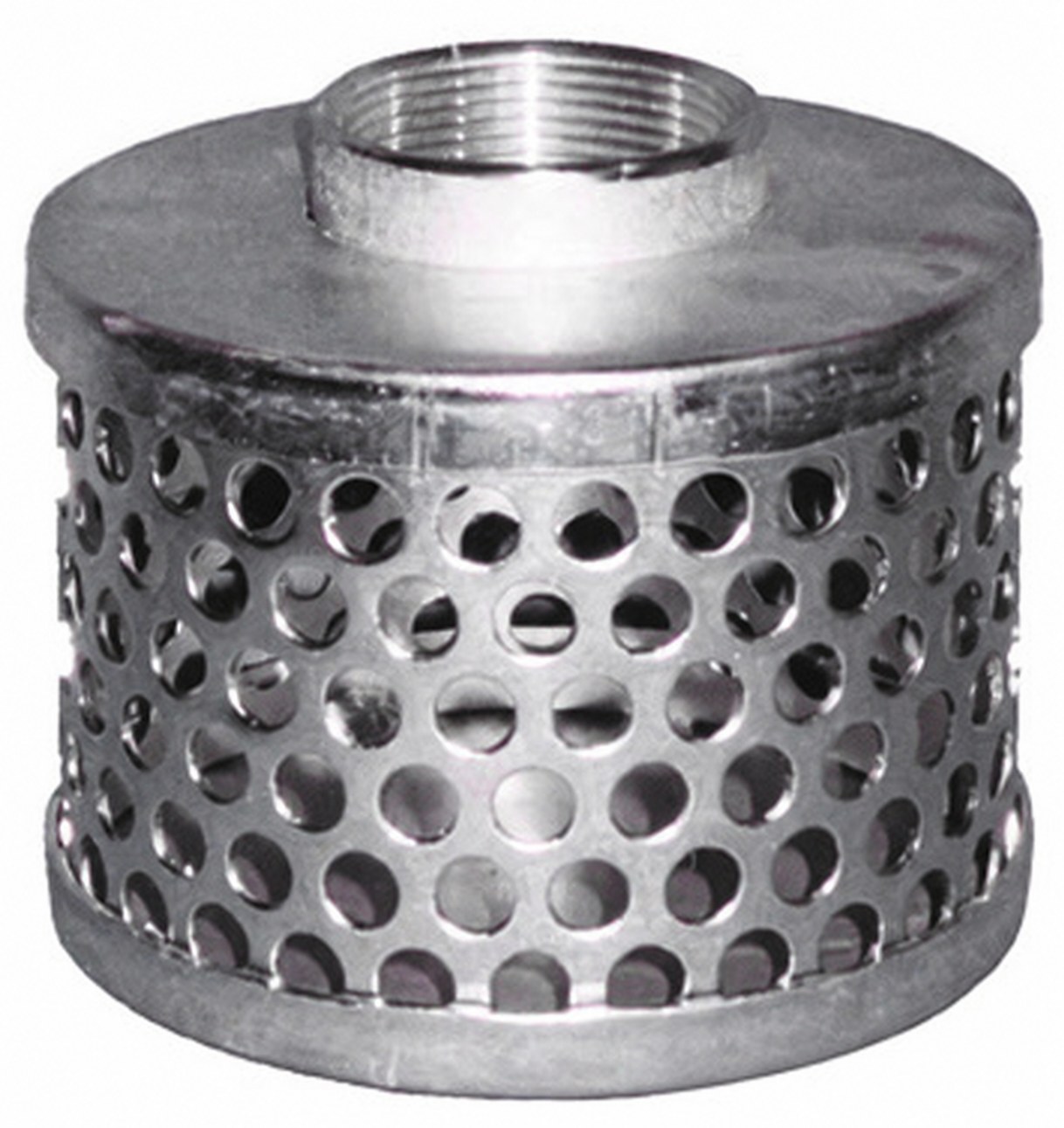

Filter type RH
Ask about availability and pricing. Include the index or dimensions and quantity in your message.
Description and technical data
On smaller screens, tables can be scrolled horizontally.
Thread BSPT
|
Index |
Thread size [in] | Outer diameter | Height | ||
| [in] | [mm] | [in] | [mm] | ||
| PMRH20-A | 1.1/2 | 4.8/10 | 121 | 3.4/10 | 87 |
| PMRH25-A | 2 | 5.9/10 | 150 | 3.9/10 | 98 |
| PMRH30-A | 2.1/2 | 5.9/10 | 150 | 3.9/10 | 98 |
| PMRH35-A | 3 | 6.5/10 | 165 | 5.1/10 | 130 |
| PMRH40-A | 4 | 6.5/10 | 165 | 5.1/10 | 130 |
| PMRH60-A | 6 | 8.9/10 | 225 | 9 | 230 |
Thread NPT
|
Part Number |
Thread size [in] | Outer diameter | Height | ||
| [in] | [mm] | [in] | [mm] | ||
| PMRH20-B | 1.1/2 | 4.8/10 | 121 | 3.4/10 | 87 |
| PMRH25-B | 2 | 5.9/10 | 150 | 3.9/10 | 98 |
| PMRH30-B | 2.1/2 | 5.9/10 | 150 | 3.9/10 | 98 |
| PMRH35-B | 3 | 6.5/10 | 165 | 5.1/10 | 130 |
| PMRH40-B | 4 | 6.5/10 | 165 | 5.1/10 | 130 |
| PMRH60-B | 6 | 8.9/10 | 225 | 9 | 230 |
| PMRH80-B | 8 | 11 | 280 | 11.4/10 | 290 |
